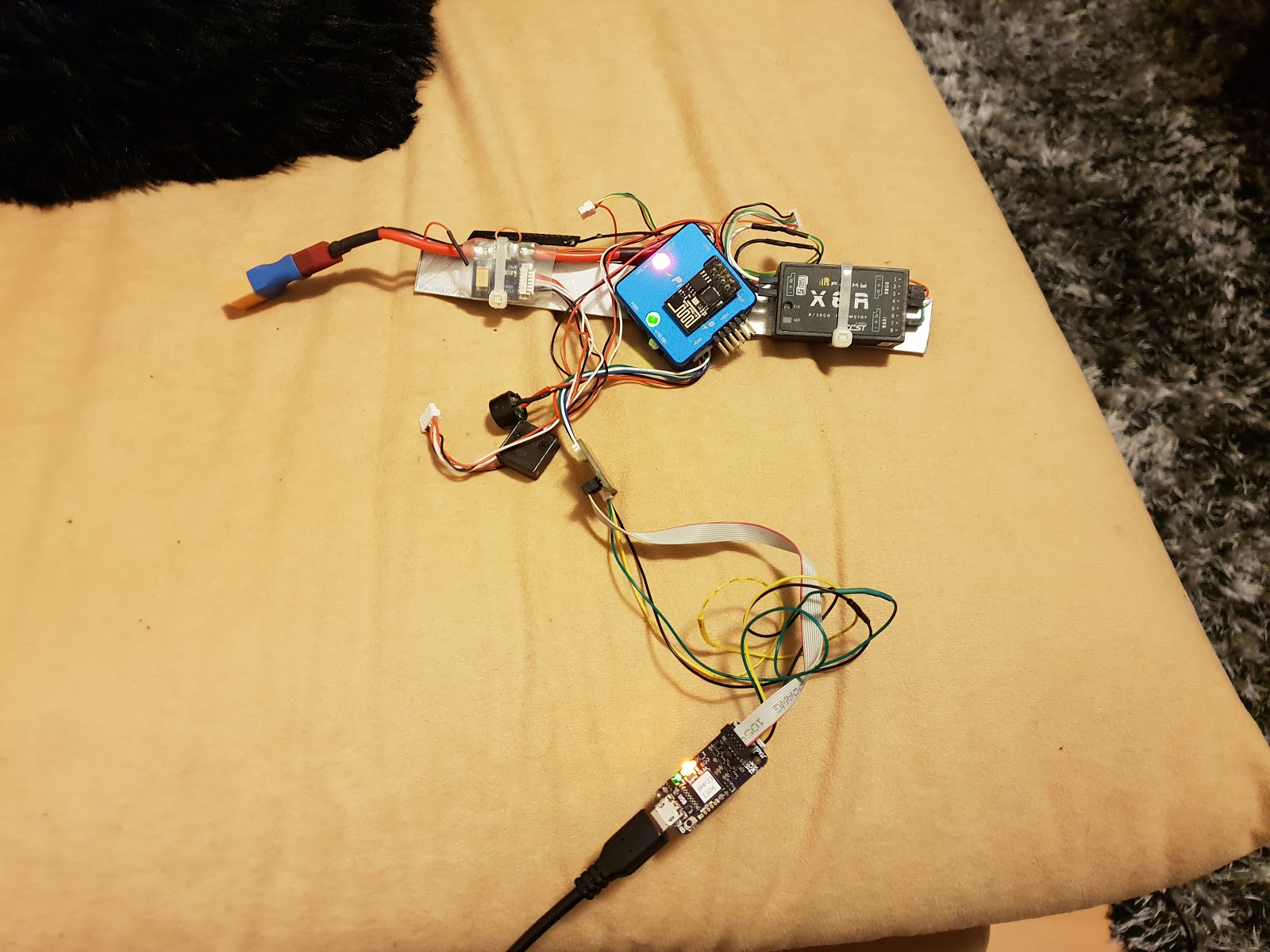

Config for VS Code debugger and Black Magic Probe + Pixracer

-
Maybe you like VSC but you don't know how to config. I have tried many different configs and find out this work best for me. I have tested it with miniblink from libopencm3.



Configuration:

{
"version": "0.2.0",
"configurations": [
{
"name": "(gdb) Launch",
"type": "cppdbg",
"request": "launch",
"miDebuggerPath": "arm-none-eabi-gdb",
"targetArchitecture": "arm",
"program": "${workspaceFolder}/miniblink.elf",
"args": [],
"stopAtEntry": false,
"cwd": "${workspaceRoot}",
"environment": [],
"externalConsole": true,
"MIMode": "gdb",
"setupCommands": [
{ "text" : "target extended-remote /dev/ttyACM0"},
{ "text" : "monitor tpwr disable"},
{ "text" : "monitor tpwr enable"},
{ "text" : "monitor connect_srst enable"},
{ "text" : "monitor swdp_scan"},
{ "text" : "attach 1"},
//{ "text" : "monitor option erase"}, //optional
//{ "text" : "monitor erase_mass"}, //optional
{ "text" : "file ${workspaceFolder}/miniblink.elf"},
{ "text" : "load"},
{ "text" : "break main"}
]
}
]
}

Sometimes you will maybe need to run it twice if you power it with Black Magic Probe.
