AUTOSAR and Time Synchronization over CAN

-

If you are checking documentation from AUTOSAR about time synchronization over CAN you can get a bit confused by looking at figure 1. Here I’ll try to clear it out with some examples.



Figure 1 - CAN Time Synchronization mechanism

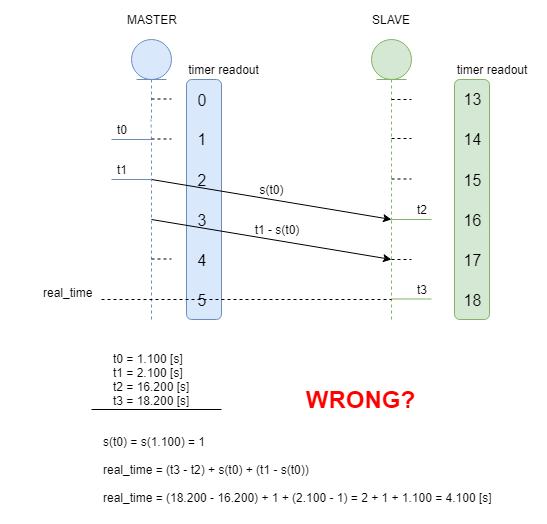

If you put numbers inside equations you will get something like the result in figure 2. The result is 4.100 [s] but by looking at the graph you will expect to get 5.100 [s]. That is because this sync method doesn’t include compensation for transfer (latency) delay. Engineers who developed this method consider CAN communication delay is negligible, but they didn’t draw a sequence diagram that way.



Figure 2 - calculation example with delay problem


To make things more understandable let's draw a graph without communication delay.

Figure 3 - calculation example with no delay problem


Does this have more sense now?
